Base class for maintaining structures. More...

#include <AtomicStructure.h>

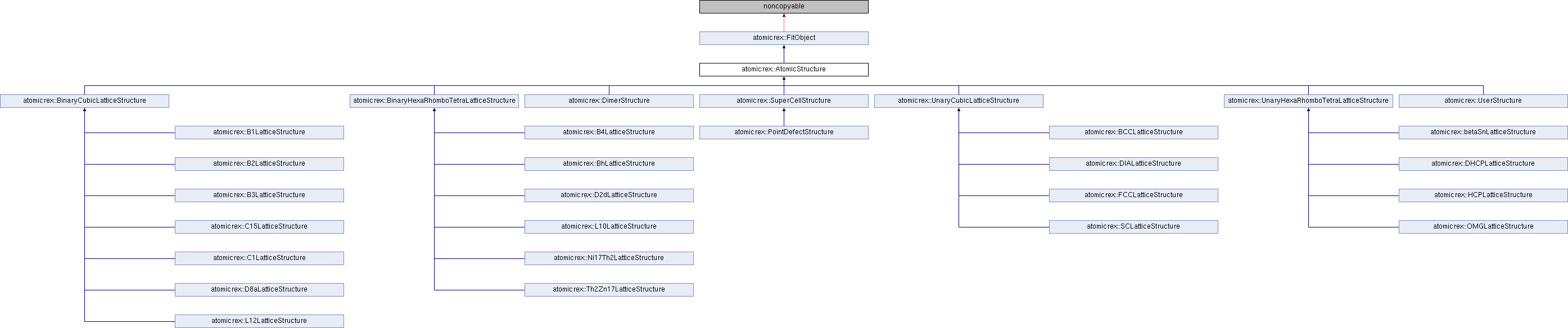

Inheritance diagram for atomicrex::AtomicStructure:

Public Types
enum	DirtyFlags { NEIGHBOR_LISTS = (1<<0), ATOM_POSITIONS = (1<<1), STRUCTURE_DOF = (1<<4) }
	Flags that indicate which parts of the structure need to be updated prior to the next energy calculation. More...

enum	OutputFormat { POSCAR, LAMMPS }
	Possible formats for writing the structure to file.

Public Member Functions
	AtomicStructure (const FPString &id, FitJob *job)

void	setupSimulationCell (const Matrix3 &cellVectors, const Point3 &cellOrigin=Point3::Origin(), const std::array< bool, 3 > &pbc=std::array< bool, 3 >{{true, true, true}})
	Set up the simulation cell. More...

void	deformSimulationCell (const Matrix3 &deformation)
	Applies an affine transformation to the cell and the atoms. More...

const Matrix3 &	simulationCell () const
	Returns global simulation cell matrix. More...

const Point3 &	simulationCellOrigin () const
	The origin point of the global simulation cell in world coordinates. More...

const Matrix3 &	reciprocalSimulationCell () const
	The inverse of the simulation cell matrix used to transform absolute coordinates to reduced coordinates. More...

bool	hasPBC (size_t dimension) const
	Returns whether periodic boundary conditions are enabled in the given spatial dimension. More...

const std::array< bool, 3 > &	pbc () const
	Returns the periodic boundary condition flags. More...

Vector3I	periodicImage (const Point3 &p) const
	Determines the periodic image of the cell the given point is located in.

Point3	wrapPoint (Point3 p) const
	Wraps a point to be inside the simulation cell if periodic boundary conditions are enabled.

Point3	wrapReducedPoint (Point3 p) const
	Wraps a point given in reduced coordinated to be inside the simulation cell.

Point3	reducedToAbsolute (const Point3 &reducedPoint) const
	Converts a point given in reduced cell coordinates to a point in absolute coordinates.

Point3	absoluteToReduced (const Point3 &worldPoint) const
	Converts a point given in absolute coordinates to a point in reduced cell coordinates.

Vector3	reducedToAbsolute (const Vector3 &reducedVec) const
	Converts a vector given in reduced cell coordinates to a vector in absolute coordinates.

Vector3	absoluteToReduced (const Vector3 &worldVec) const
	Converts a vector given in absolute coordinates to a point in vector cell coordinates.

void	setAtomCount (int numLocalAtoms)
	Resizes the atoms array. More...

int	numLocalAtoms () const
	Returns the number of (real) atoms in the structure cell.

int	numGhostAtoms () const
	Returns the number of ghost atoms in the structure cell.

int	numAtoms () const
	Returns the total number of atoms in the structure cell including real and ghost atoms.

const std::vector< Point3 > &	atomPositions () const
	Returns the array of positions of all atoms (including ghosts) in the structure (const version).

std::vector< Point3 > &	atomPositions ()
	Returns the array of positions of all atoms (including ghosts) in the structure cell (non-const version).

void	setAtomPositions (const std::vector< Point3 > &newPositions)
	Sets the array of positions of all atoms in the structure cell. More...

const std::vector< Point3 > &	atomDisplacements () const
	Returns the array of displacements of all atoms in the structure cell wrt a reference structure (const version).

std::vector< Point3 > &	atomDisplacements ()
	Returns the array of displacements of all atoms in the structure cell wrt a reference structure (non-const version).

const std::vector< Point3 > &	atomInitialPositions () const
	Returns the initial positions of the all real atoms they had at the beginning of the job.

int	atomType (int i) const
	Returns the type of a i-th atom.

const std::vector< int > &	atomTypes () const
	Returns the array of types of all atoms in the cell (const version).

std::vector< int > &	atomTypes ()
	Returns the array of types of all atoms in the cell (non-const version).

const std::vector< int > &	atomTags () const
	Returns the array of IDs of the atoms in the cell (const version).

std::vector< int > &	atomTags ()
	Returns the array of IDs of the atoms in the cell (non-const version).

const std::vector< Vector3 > &	atomForces () const
	Returns the array of force vectors (const version).

std::vector< Vector3 > &	atomForces ()
	Returns the array of force vectors (non-const version).

AtomVectorProperty &	atomForcesProperty ()
	Returns the property for the atomic force vectors.

const std::vector< std::pair< int, int > > &	forwardMapping () const
	Returns an array of integer pairs that map the real atoms to the ghost atoms.

const std::vector< int > &	reverseMapping () const
	Returns an array of integers that maps the ghost atoms to the real atoms.

template<typename T >
T *	perAtomData ()
	Returns a pointer to the memory buffer that stores temporary per-atom data used by the potential routines.

NeighborList &	neighborList (const Potential *potential)

void	setDirty (DirtyFlags flags)
	Marks parts of the structure that must be updated before the next energy calculation.

bool	isDirty (DirtyFlags parts) const
	Tests whether certain parts of the structure must be updated before the next energy calculation.

void	clearDirty (DirtyFlags parts)
	Resets the dirty flags.

virtual void	dofValueChanged (DegreeOfFreedom &dof) override
	This callback function is called by the DOFs of the structure each time when their values changes. More...

virtual void	updateStructure ()
	Updates the structure, creates ghost atoms and builds neighbor lists.

virtual bool	computeProperties (bool isFitting) override
	Computes all enabled properties of the structures. More...

double	computeEnergy (bool computeForces, bool isFitting, bool suppressRelaxation=false)
	Computes the total energy and optionally the forces for this structure. More...

bool	relax (bool isFitting)
	Relaxes the structural degrees of freedom such that the total energy is minimized. More...

void	writeToDumpFile (const FPString &filename, bool includeGhostAtoms=false) const
	Exports the structure to a LAMMPS dump file. More...

void	writeToPoscarFile (const FPString &filename, bool includeGhostAtoms=false) const
	Exports the structure to a POSCAR file. More...

void	writeToFile ()
	Exports the structure to file if a filename has been provided.

double	totalEnergy () const
	Returns the total potential energy of this structure after computeEnergy() has been called.

const std::array< double, 6 > &	virial () const
	Returns the virial tensor computed by the force routine.

std::array< double, 6 > &	virial ()
	Returns a reference to the virial tensor. More...

double	pressureTensor (int voigtIndex) const
	Returns a component of the pressure tensor. More...

double	pressure () const
	Returns the hydrostatic part of the pressure tensor. More...

virtual void	parse (XML::Element structureElement) override
	Parses the structure-specific parameters in the XML element in the job file.

Public Member Functions inherited from atomicrex::FitObject
virtual	~FitObject ()=default
	Virtual destructor.

double	relativeWeight () const
	Returns the relative fit weight assigned to this object.

void	setRelativeWeight (double weight)
	Assigns a relative fit weight to this object.

virtual void	assignAbsoluteWeights (double absoluteWeight)
	Recursively assigns absolute weights to the properties of this object and its sub-objects.

const std::vector< FitProperty * > &	properties () const
	Returns a list of fitting properties of this object.

void	listAllProperties (std::vector< FitProperty *> &list) const
	Builds a list of properties of this object and all its sub-objects.

FitProperty *	propertyById (const FPString &id) const
	Returns the property with the given ID.

const std::vector< DegreeOfFreedom * > &	DOF () const
	Returns a list of degrees of freedom of this object.

void	listAllDOF (std::vector< DegreeOfFreedom *> &list) const
	Builds a list of degrees of freedom of this object and all its sub-objects.

DegreeOfFreedom *	DOFById (const FPString &id, const FPString &tag=FPString()) const
	Returns the degree of freedom with the given ID (and tag).

const std::vector< FitObject * > &	fitObjects () const
	Returns the list of FitObjects which are part of this group.

void	registerSubObject (FitObject *subobject, bool deleteOnShutdown=false)
	Registers a sub-object.

virtual void	print (MsgLogger &stream)
	Outputs the name of the object.

bool	fitEnabled () const
	Returns whether this object and it's children are included in the fit.

void	setFitEnabled (bool enable)
	Sets whether this object and it's children are included in the fit.

bool	outputEnabled () const

void	setOutputEnabled (bool enable)

const FPString &	id () const
	Returns the identifier of this object instance.

void	setId (const FPString &id)
	Sets the main identification tag.

const FPString &	tag () const
	Returns the assigned tag string.

void	setTag (const FPString &tag)
	Sets the complementary identification tag.

FitJob *	job () const
	Returns a pointer to the job to which this object belongs.

FitObject *	parent () const
	Returns the parent of this object in the hierarchy.

Protected Attributes
ScalarFitProperty	_totalEnergyProperty
	Output of the energy calculation that can be used for fitting.

ScalarFitProperty	_atomicEnergyProperty
	Output of the per atom energy calculation that can be used for fitting.

ScalarFitProperty	_totalVolumeProperty
	The total volume of the structure cell.

ScalarFitProperty	_atomicVolumeProperty
	The average volume per atom in the structure cell.

ScalarFitProperty	_pressureTensorProperty [6]
	The components of the cell's pressure tensor.

ScalarFitProperty	_pressureProperty
	One third of the trace of the cell's pressure tensor.

ScalarFitProperty	_bulkModulusProperty
	The bulk modulus of the lattice.

ScalarFitProperty	_elasticConstantProperties [21]
	The elastic constants.

AtomVectorProperty	_atomForcesProperty
	The force vector.

AtomCoordinatesDOF	_atomCoordinatesDOF
	This DOF encapsulates the atomic degrees of freedom.

Protected Attributes inherited from atomicrex::FitObject
bool	_fitEnabled = true
	Controls whether this object and it's children are included in the fit.

bool	_outputEnabled = true

FitJob *	_job = nullptr
	Pointer to the job this object belongs to.

FPString	_id
	The identifier string of this object instance.

double	_relativeWeight = 1.0
	The relative fit weight assigned to this object.

Additional Inherited Members
Protected Member Functions inherited from atomicrex::FitObject
	FitObject ()
	Default Constructor.

	FitObject (const FPString &id, FitJob *job, const FPString &tag=FPString())
	Constructor.

void	registerProperty (FitProperty *prop, bool deleteOnShutdown=false)
	Registers a property of this object.

void	registerDOF (DegreeOfFreedom *dof)
	Registers a DOF of this object.

Detailed Description

Base class for maintaining structures.

This class is used to store structure specific information including atomic coordinates, neighbor lists, total energy, volume, pressure etc.

Member Enumeration Documentation

◆ DirtyFlags

enum atomicrex::AtomicStructure::DirtyFlags

Flags that indicate which parts of the structure need to be updated prior to the next energy calculation.

Enumerator
NEIGHBOR_LISTS	neighbor lists require updating
ATOM_POSITIONS	ghost atom positions require updating
STRUCTURE_DOF	degree(s) of freedom requires updating

Member Function Documentation

◆ computeEnergy()

double atomicrex::AtomicStructure::computeEnergy	(	bool	computeForces,
		bool	isFitting,
		bool	suppressRelaxation = `false`
	)

Computes the total energy and optionally the forces for this structure.

Computes the total energy and optionally the forces of this structure.

Parameters

computeForces	Turns on the computation of forces.
isFitting	Indicates that the structure is included in the fitting data set.
suppressRelaxation	If True structure relaxation will be suppressed.

Returns: A scalar representing the energy of the structure. If the forces are computed they are stored in the structure object.

See also: atomForcesProperty() for retrieving the atomic forces

By default, performs relaxation of atomic positions if enabled by the user.

Parameters

computeForces	if True the forces will be evaluated as well
isFitting	determines whether this DOF should be relaxed (usually the desired behavior depends on the program phase)
suppressRelaxation	if True structural relaxation will be suppressed

◆ computeProperties()

bool atomicrex::AtomicStructure::computeProperties ( bool isFitting )

overridevirtual

Computes all enabled properties of the structures.

Parameters

isFitting Indicates that the structure is included in the fitting data set.

Reimplemented from atomicrex::FitObject.

◆ deformSimulationCell()

void atomicrex::AtomicStructure::deformSimulationCell ( const Matrix3 & deformation )

Applies an affine transformation to the cell and the atoms.

Parameters

deformation defined 3x3 deformation matrix that is applied to the simulation cell

◆ dofValueChanged()

virtual void atomicrex::AtomicStructure::dofValueChanged ( DegreeOfFreedom & dof )

inlineoverridevirtual

This callback function is called by the DOFs of the structure each time when their values changes.

Warning: This method should not be called by the user.

Reimplemented from atomicrex::FitObject.

◆ hasPBC()

bool atomicrex::AtomicStructure::hasPBC ( size_t dimension ) const

inline

Returns whether periodic boundary conditions are enabled in the given spatial dimension.

Parameters

dimension index to spatial dimension (0=x, 1=y, z=3)

Returns: True/False if boundary condition is enabled/disabled.

◆ pbc()

const std::array<bool,3>& atomicrex::AtomicStructure::pbc ( ) const

inline

Returns the periodic boundary condition flags.

Returns: 3-dimensional vector of True/False values.

◆ pressure()

double atomicrex::AtomicStructure::pressure ( ) const

inline

Returns the hydrostatic part of the pressure tensor.

The function thus returns one third of the trace of the pressure tensor.

◆ pressureTensor()

double atomicrex::AtomicStructure::pressureTensor ( int voigtIndex ) const

inline

Returns a component of the pressure tensor.

Parameters

voigtIndex Index of the pressure tensor component in Voigt notation

◆ reciprocalSimulationCell()

const Matrix3& atomicrex::AtomicStructure::reciprocalSimulationCell ( ) const

inline

The inverse of the simulation cell matrix used to transform absolute coordinates to reduced coordinates.

Returns: 3x3 matrix representing the reciprocal cell metric

◆ relax()

bool atomicrex::AtomicStructure::relax ( bool isFitting )

Relaxes the structural degrees of freedom such that the total energy is minimized.

Parameters

isFitting Indicates that the structure is included in the fitting data set.

◆ setAtomCount()

void atomicrex::AtomicStructure::setAtomCount ( int numLocalAtoms )

Resizes the atoms array.

Parameters

numLocalAtoms new number of (local) atoms.

◆ setAtomPositions()

void atomicrex::AtomicStructure::setAtomPositions ( const std::vector< Point3 > & newPositions )

inline

Sets the array of positions of all atoms in the structure cell.

Parameters

newPositions vector of 3-dimensional vectors ("points") representing the atomic coordinates. Size must match the number of local atoms.

◆ setupSimulationCell()

void atomicrex::AtomicStructure::setupSimulationCell	(	const Matrix3 &	cellVectors,
		const Point3 &	cellOrigin = `Point3::Origin()`,
		const std::array< bool, 3 > &	pbc = `std::array<bool,3>{{true,true,true}}`
	)

Set up the simulation cell.

Parameters

cellVectors	cell metric (3x3 matrix)
cellOrigin	origin of cell (3-dim vector)
pbc	periodic boundary conditions in each direction

◆ simulationCell()

const Matrix3& atomicrex::AtomicStructure::simulationCell ( ) const

inline

Returns global simulation cell matrix.

Returns: 3x3 matrix representing the simulation cell metric

◆ simulationCellOrigin()

const Point3& atomicrex::AtomicStructure::simulationCellOrigin ( ) const

inline

The origin point of the global simulation cell in world coordinates.

Returns: 3-dimensional vector representing the origin of the simulation cell.

◆ virial()

std::array<double,6>& atomicrex::AtomicStructure::virial ( )

inline

Returns a reference to the virial tensor.

The virial tensor is returned as a six-dimensional vector. The indices of the vector follow the Voigt notation.

◆ writeToDumpFile()

void atomicrex::AtomicStructure::writeToDumpFile	(	const FPString &	filename,
		bool	includeGhostAtoms = `false`
	)		const

Exports the structure to a LAMMPS dump file.

Parameters

filename	Name of the output file
includeGhostAtoms	If True ghost atoms used during computation of the energy will be included in the output

◆ writeToPoscarFile()

void atomicrex::AtomicStructure::writeToPoscarFile	(	const FPString &	filename,
		bool	includeGhostAtoms = `false`
	)		const

Exports the structure to a POSCAR file.

Parameters

filename	Name of the output file
includeGhostAtoms	If True ghost atoms used during computation of the energy will be included in the output

The documentation for this class was generated from the following files:

AtomicStructure.h
AtomicStructure.cpp

Public Types

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ DirtyFlags

Member Function Documentation

◆ computeEnergy()

◆ computeProperties()

◆ deformSimulationCell()

◆ dofValueChanged()

◆ hasPBC()

◆ pbc()

◆ pressure()

◆ pressureTensor()

◆ reciprocalSimulationCell()

◆ relax()

◆ setAtomCount()

◆ setAtomPositions()

◆ setupSimulationCell()

◆ simulationCell()

◆ simulationCellOrigin()

◆ virial()

◆ writeToDumpFile()

◆ writeToPoscarFile()
